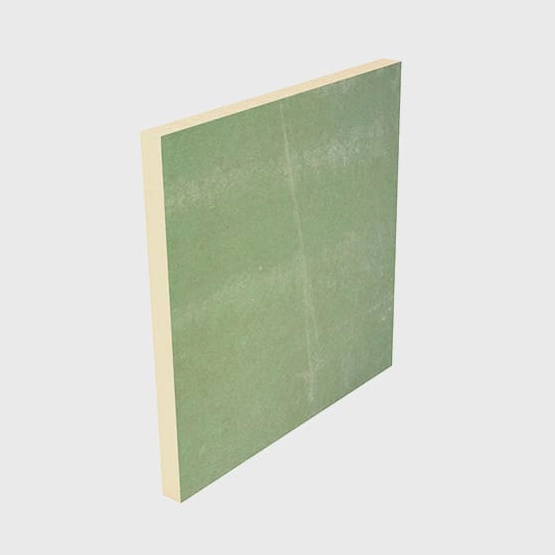

Italia Gyp moisture Plasterboard is lightweight for use in standard internal wall and ceiling applications where Moisture Resistant properties is required. They are produced from high purity natural gypsum core being sheeted in a closely adhering best selected paper liners. Italia Gyp moisture Plasterboard has fibre glass which improves strength and Sag Resistance.
Italia Gyp Moisture Resistant Plasterboard used in Residential Buildings, Commercial Buildings, Hospitals, Airports, Educational Institutions and other such applications
Italia Gyp moisture Plasterboards are produced to ASTM C1396/C1396M & EN 520 Type A & H1 standards Tested accordance to ASTM E84 & ASTM 473
| Properties (per 12.5 mm) | ASTM 1396:2006 Specification | Italia Gypsum Specification |
|---|---|---|
| Type | H | H |
| Flexural Strength (N) Longitudinal | 476 | > 570 |
| Flexural Strength (N) Transverse | 160 | > 240 |
| Nail Pull Resistance | 343 | 360 |
| Core Hardness | > 49 | > 70 |
| Edge Hardness | > 49 | > 60 |
| Thickness (mm) | ∓ 0.40 | ∓ 0.20 |
| Board length (mm) | ∓ 6.00 | 0, - 2.0 mm |
| Board Width (mm) | - 3.00 | 0, - 2.0 |
| End Squareness (mm) | ∓ 3.20 | ∓ 2.00 |
| Water Absorption | < 5% | Below 10% |
| Surface Water Absorption | 1.6 gms | 9.00 ∓ 0.20 |
| Weight (kg/m 2 ) | - | 8.00 ∓ 2.00 |
| Humidified Deflection | 32 mm | 32 mm |
Standard length is 2400mm Special length is 1800mm to 3000mm.
1200mm & 1220mm
9.5mm, 12.5mm, 15mm & 16mm
Tapered, Square, Bevelled & Round
Face: Green, Back: Grey
10%
